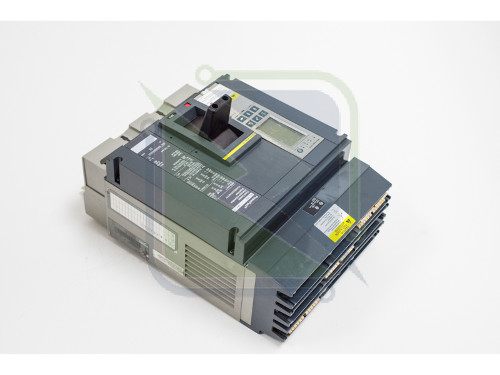

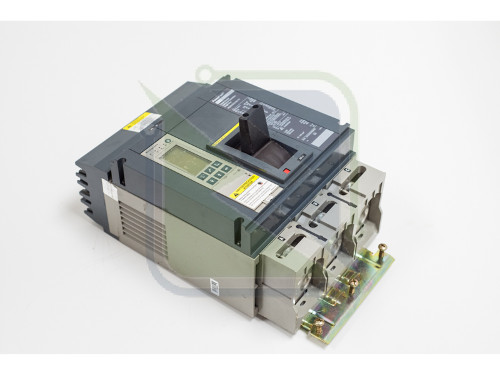

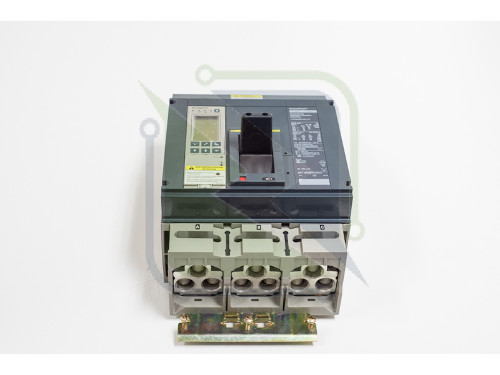

PGA36080U33A Square D / Schneider Electric Molded Case Circuit Breakers
Item # PGA36080U33A

NOTE: Images are for Reference Only

Product Details and Specifications

Type PGA
Amperage 800
Poles 3
Voltage 600
Short Circ Int Cap 35kA@480V

PGA36080U33A Description

MOLDED CASE CIRCUIT BREAKER 600V 800A Molded Case Circuit Breakers from Square D / Schneider Electric

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

Call For Best Price

2 in stock

Call For Best Price

Ships in 0-2 Working Days

Call For Best Price

Ships in 0-2 Working Days

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

600 VAC 50/60 Hz, 800 A, 18 kA, 3-Pole, P-Frame, ABC Phase, Line Lug Load Terminal, Electronic, Standard, Micrologic 5.0, LSI, Panelboard Molded Case Circuit Breaker
Electronic, Standard, Micrologic 5.0, LSI
600 Volt AC 50/60 Hertz
800 Amp
3
18 Kiloamp at 600 Volt AC

Features and Benefits

The P-Frame Circuit Breakers Features the Exclusive Micrologic Electronic Trip Units, Which Allow for a Range of Sophisticated Applications for Metering and Monitoring; The P-Frame Circuit Breakers with K Interrupting Rating are Recommended for Applications Having High Inrush and/or Non-Linear Loads Such as Large Motors, Transformers, Motors with Soft Start; RoHS/REACH Compliant; Mercury-Free; PVC-Free; Green Premium Product
RoHS/REACH Compliant; Overall Dimension 8.27 Inch Width x 8.05 Inch Depth x 12.86 Inch Height; Frame Type P; Terminal Type I-Line Connection Line Lug Load; Control Type Toggle; Terminal Wire Size (3) 3/0 AWG to 500 KCMIL (Copper/Aluminum); Continuous Current Rating 80 Percent; Phase Connection Type ABC; Operation Ambient Air Temperature Rating 28 to 158 Deg F; Applicable Standard NOM
