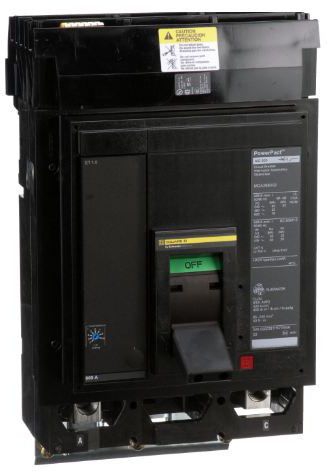

MGA268002 Square D / Schneider Electric Molded Case Circuit Breakers
Item # MGA268002

MGA268002
MGA268002

NOTE: Images are for Reference Only

Product Details and Specifications

MGA268002 Description

MOLDED CASE CIRCUIT BREAKER 600V 800A Molded Case Circuit Breakers from Square D / Schneider Electric

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

Call For Best Price

Out of stock

Call For Best Price

Out of stock

Call For Best Price

Out of stock

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

600 VAC 50/60 Hz, 800 A, 65 kA, 2-Pole, M-Frame, AC Phase, Line Lug Load Terminal, Thermal Magnetic, Basic Electronic, ET 1.0, Panelboard Molded Case Circuit Breaker
Thermal Magnetic, Basic Electronic ET 1.0
600 Volt AC 50/60 Hertz
800 Amp
2
65 Kiloamp at 240 Volt AC, 35 Kiloamp at 480 Volt AC, 18 Kiloamp at 600 Volt AC

Features and Benefits

Returnable; RoHS/REACH Compliant; Mercury-Free; PVC-Free; Green Premium Product; Made in USA

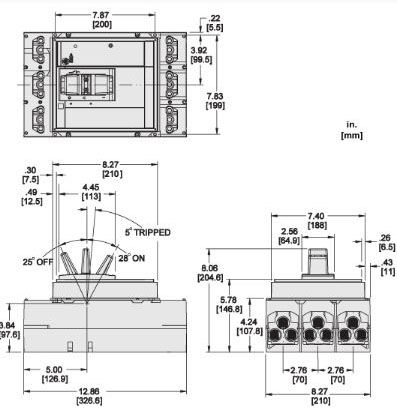

RoHS/REACH Compliant; Overall Dimension 8.27 Inch Width x 8.05 Inch Depth x 12.86 Inch Height; Frame Type M; Terminal Type I-Line Connection Line Lug Load; Control Type Operating Handle; Terminal Wire Size 3/0 AWG to 500 KCMIL (Copper/Aluminum); Continuous Current Rating 80 Percent; Phase Connection Type AC; Operation Ambient Air Temperature Rating -13 to 158 Deg F; Applicable Standard NOM, IEC
