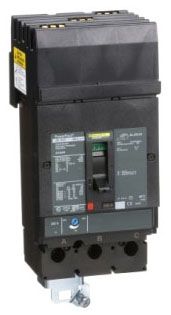

JDA36200 Square D / Schneider Electric Molded Case Circuit Breakers
Item # JDA36200

JDA36200

NOTE: Images are for Reference Only

Product Details and Specifications

Type JDA
Amperage 200
Poles 3
Voltage 600
Short Circ Int Cap 18kA@480V
Configuration I-Line
Feature 1 Phase Connection: ABC

JDA36200 Description

Square D, Molded Case, Circuit Breakers, Type JDA, 200A, 3P, 600 VAC, I-Line Style Plug-In, Thermal Magnetic, Phase Connection ABC, Interrupting Current: 18 kA at 480 VAC Molded Case Circuit Breakers from Square D / Schneider Electric

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

Call For Best Price

5 in stock

Call For Best Price

Ships in 0-2 Working Days

Call For Best Price

30 in stock

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

600 VAC 50/60 Hz, 200 A, 14 kA Interrupt Rating, 3-Pole, Black, Thermal Magnetic, J-Frame, Panelboard Molded Case Circuit Breaker
Thermal Magnetic, J-Frame
600 Volt AC 50/60 Hertz
200 Amp
3
25 Kiloamp at 240 Volt AC, 18 Kiloamp at 480 Volt AC, 14 Kiloamp at 600 Volt AC, 20 Kiloamp at 250 Volt DC

Features and Benefits

J-Frame Circuit Breakers Offer High Performance and a Wide Range of Interchangeable Trip Units to Protect Most Applications; Returnable; PVC-Free; Mercury-Free; Green Premium Products; RoHS/REACH Compliant
RoHS/REACH Compliant; Overall Dimension 4.09 Inch Width x 3.39 Inch Depth x 7.52 Inch Height; Wire Size 3/0 AWG to 350 KCMIL (Aluminum/Copper); Wire Stripping Length 0.98 Inch; Tightening Torque 221.27 Pound Force-Inch; Mounting Height 4.5 Inch; Continuous Current Rating 80 Percent; Protection Type Overload, Short-Circuit; Connection Type Load Lug; Mounting Type Bracket; Phase Connection Type ABC; Enclosure Rating NEMA; Temperature Rating 28 to 158 Deg F (Operation), -58 to 185 Deg F (Storage); Applicable Standard IEC

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The JDA36200 Square D / Schneider Electric Molded Case from Relectric

Relectric stocks new and used JDA36200 Square D / Schneider Electric Molded Case and many more brand-name electrical supplies. All of our reconditioned JDA36200 Square D / Schneider Electric Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your JDA36200 Square D / Schneider Electric Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the JDA36200 Square D / Schneider Electric Molded Case. Contact one of our sales consultants today.
