HDL36100 Square D / Schneider Electric Molded Case Circuit Breakers
Item # HDL36100

HDL36100
HDL36100

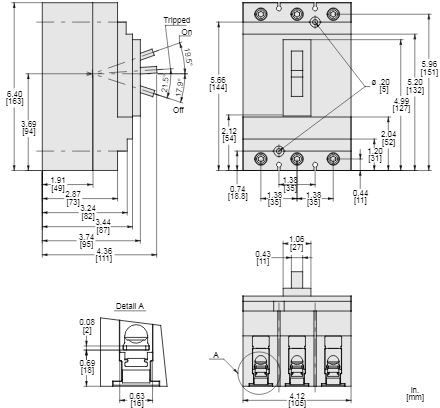

NOTE: Images are for Reference Only

Product Details and Specifications

Type HDL
Amperage 100
Poles 3
Voltage 600
Short Circ Int Cap 18kA@480V
Configuration Line + Load Lugs
Feature 1 80% Rated

HDL36100 Description

Square D, Molded Case, Circuit Breakers, Type HDL, 100A, 3P, 600 VAC, Line + Load Side Lugs, Thermal Magnetic, 80% Rated, Interrupting Current: 25 kA at 240 VAC / 18 kA at 480 VAC / 14 kA at 600 VAC Molded Case Circuit Breakers from Square D / Schneider Electric

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

Call For Best Price

8 in stock

Call For Best Price

Ships in 0-2 Working Days

Call For Best Price

1 in stock

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?

Extended Details

600 VAC 50/60 Hz, 250 VDC, 100 A, 14 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
Thermal Magnetic, Current Limiting
H
600 Volt AC 50/60 Hertz, 250 Volt DC
600 Volt
250 Volt

Features and Benefits

Powerpact H-Frame Circuit Breakers are Designed to Protect Electrical Systems from Damage Caused by Overloads and Short Circuits; Powerpact H-Frame Circuit Breakers are Available with Either Thermal Magnetic or Micrologic Electronic Trip Protection Units; This Powerpact H-Frame Circuit Breaker Provides Thermal Magnetic Circuit Protection with a Breaking Capacity of 14 Kiloamp at 600 Volt AC; All Powerpact H-Frame Circuit Breakers are Equipped with Dual Break Rotating Contacts that Reduce the Amount of Peak Current During a Short Circuit Fault; All Powerpact Circuit Breakers have an Integral Push to Trip Button in the Cover to Manually Trip the Circuit Breaker; HACR Rated; RoHS/REACH Compliant; Mercury-Free; PVC-Free; Green Premium Product
RoHS/REACH Compliant; Trip Setting 800 Amp (Hold), 1700 Amp (Trip); Mounting Type Unit; Control Type Toggle; Terminal Wire Size 14 to 3/0 AWG (Copper/Aluminum); Continuous Current Rating 80 Percent; Operation Ambient Air Temperature Rating 28 to 158 Deg F; Application Distribution; Applicable Standard EAC, NOM, IEC, CCC, NEMA, EN/IEC 60947-2, Federal Specification W-C-375B/GEN
